MMO Coated Titanium Anodes
MMO Coated Titanium Anodes

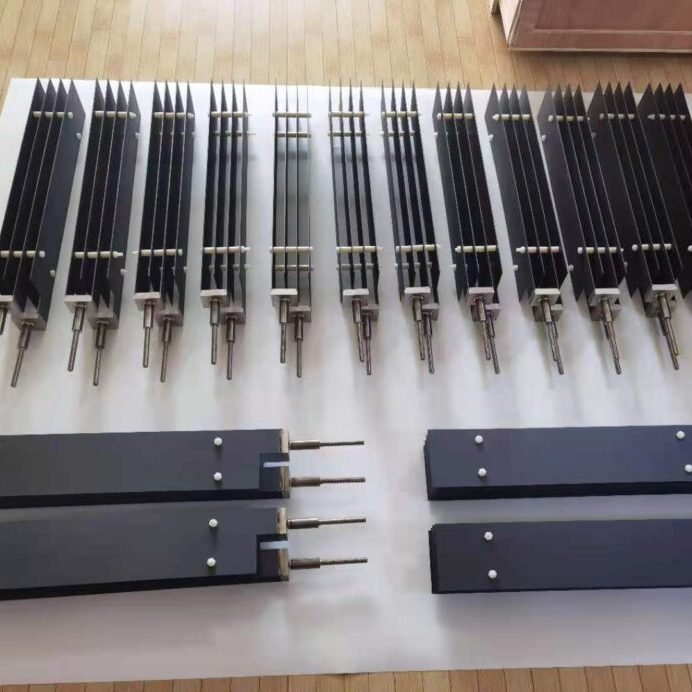

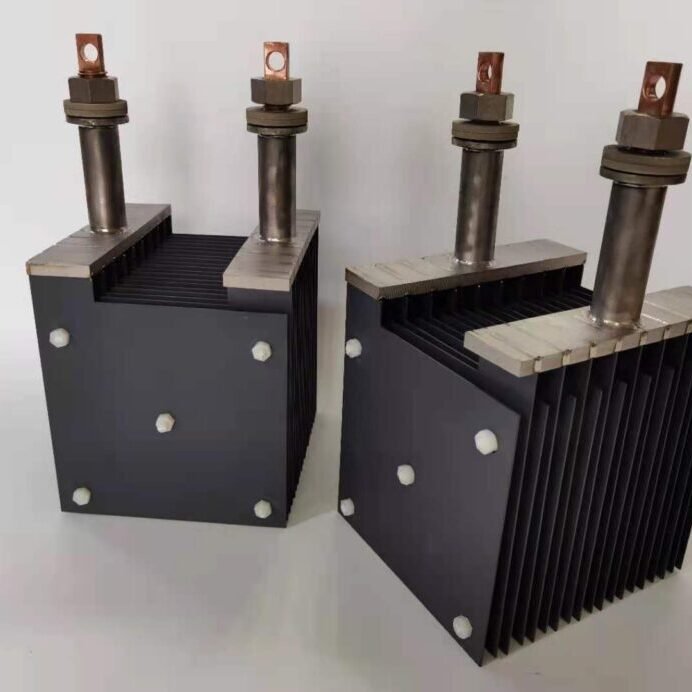

Custom anodes use Grade 1 or Grade 2 titanium substrates with coating systems selected for the electrolyte and operating conditions. Available forms include plate, sheet, tube, mesh, round components and titanium baskets.
Available Materials and Forms
- Base material: Grade 1 and Grade 2 titanium.
- Coating options: ruthenium-iridium oxide, ruthenium-titanium oxide, and platinum/iridium/ruthenium coating systems subject to application review.
- Substrate size: thickness at least 1.5 mm, width up to 1200 mm and length up to 6000 mm.
- Catalog examples: tray 20 x 960 x 960 mm; mesh panel 1.5 x 887 x 887 mm; Grade 2 baffle plate 2.0 mm thick.

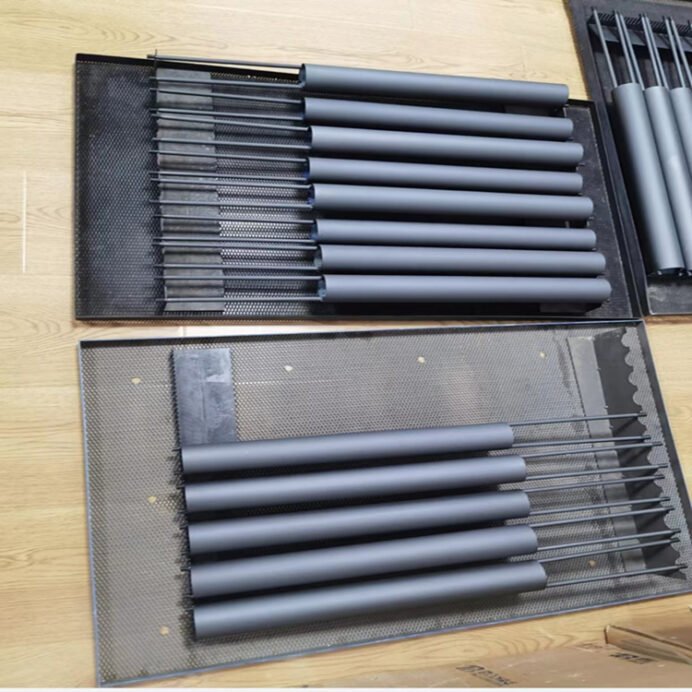

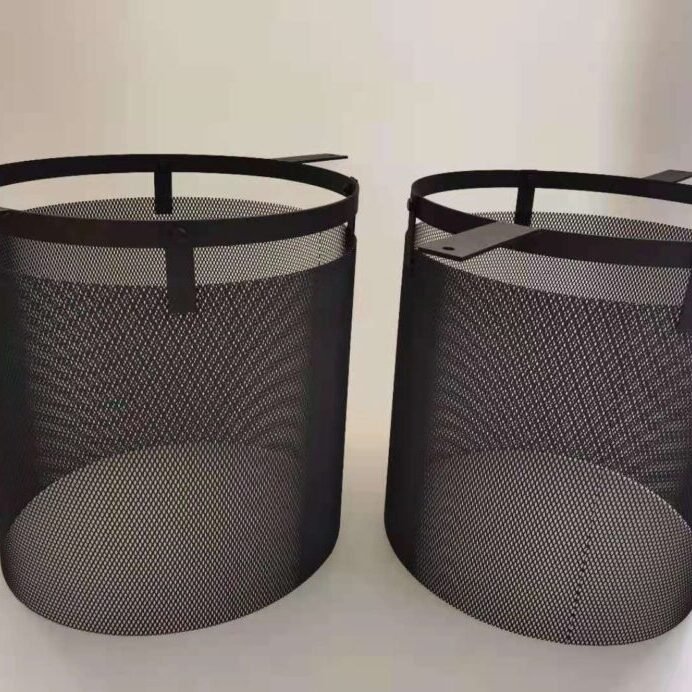

- Shapes: sheet, plate, round, tube, mesh, electroplating basket and drawing-based custom shapes.
- Condition: annealed titanium substrate.
Application Review
Anode coating and geometry should be matched to the electrolyte, current density, polarity, operating temperature, required service life and cleaning conditions. These details are more useful than selecting a coating by name alone.
Request a Titanium Anode Quote
Please provide the application, electrolyte composition, operating current or current density, dimensions, quantity, connection details, coating preference, expected service life and required inspection documents. Send your titanium anode requirements for a feasibility review and quotation.
- Substrate Metal Chemical Composition
- Substrate Metal Mechanical Properties
- MMO Coating: Mixed Ruthenium-Iridium Oxide
- Coating Contents and Life Span
- Working Parameters for Ru-Ir Coating
| Grade | N | C | H | Fe | O | Ti |
|---|---|---|---|---|---|---|
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | bal |
| Grade | Tensile strength | Yield stength | Elongation(%) | ||
|---|---|---|---|---|---|
| ksi | MPA | KSI | MPA | ||
| Gr1 | 35 | 240 | 25 | 170 | 30 |
| Gr2 | 50 | 345 | 40 | 275 | 25 |
| Coating | Oxygen revolution potential | Suitable working environment |
|---|---|---|
| Mixed Ruthenium and Iridium | <1.13V | Solution contains Cl-, PH>=7 |
| 8grams/m2 | 10grams/m2 | 12grams/m2 | 15grams/m2 | 20grams/m2 |
|---|---|---|---|---|
| 6,000 hours | 8,000 hours | 10,000 hours | 12,000 hours | 13,500 hours |
| Current density | Temperature | Chlorine concentration | Polarity reversal | Reversal frequency |
|---|---|---|---|---|
| <500A/m2 | 40-60°C | About 30grams/liter | suitable | 2-4 hours |
