Custom Titanium Heat Exchangers
Custom Titanium Heat Exchanger Manufacturer
Young Things Titanium manufactures drawing-based titanium heat exchanger components and assemblies for corrosive-fluid and thermal-transfer systems.
- Base materials: Grades 1, 2, 7 and 12 titanium or titanium alloy, subject to design requirements

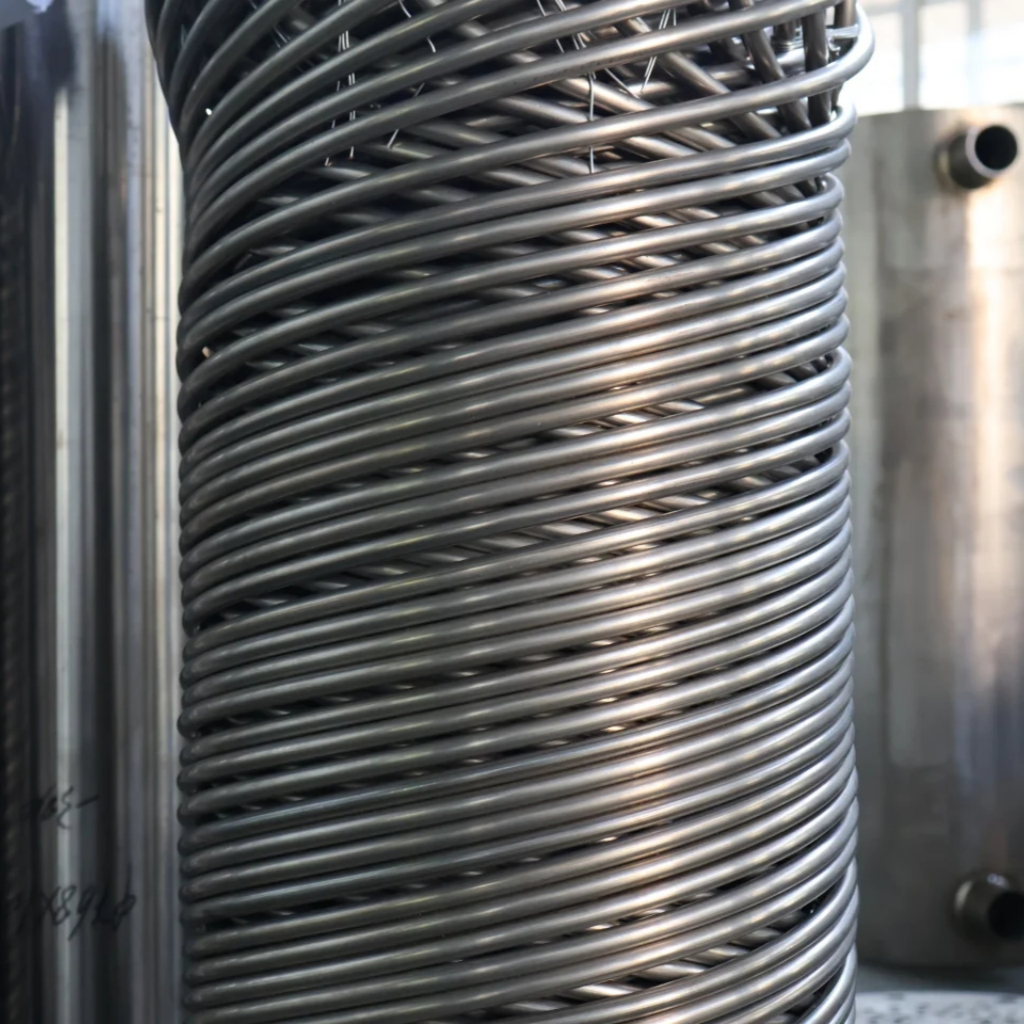

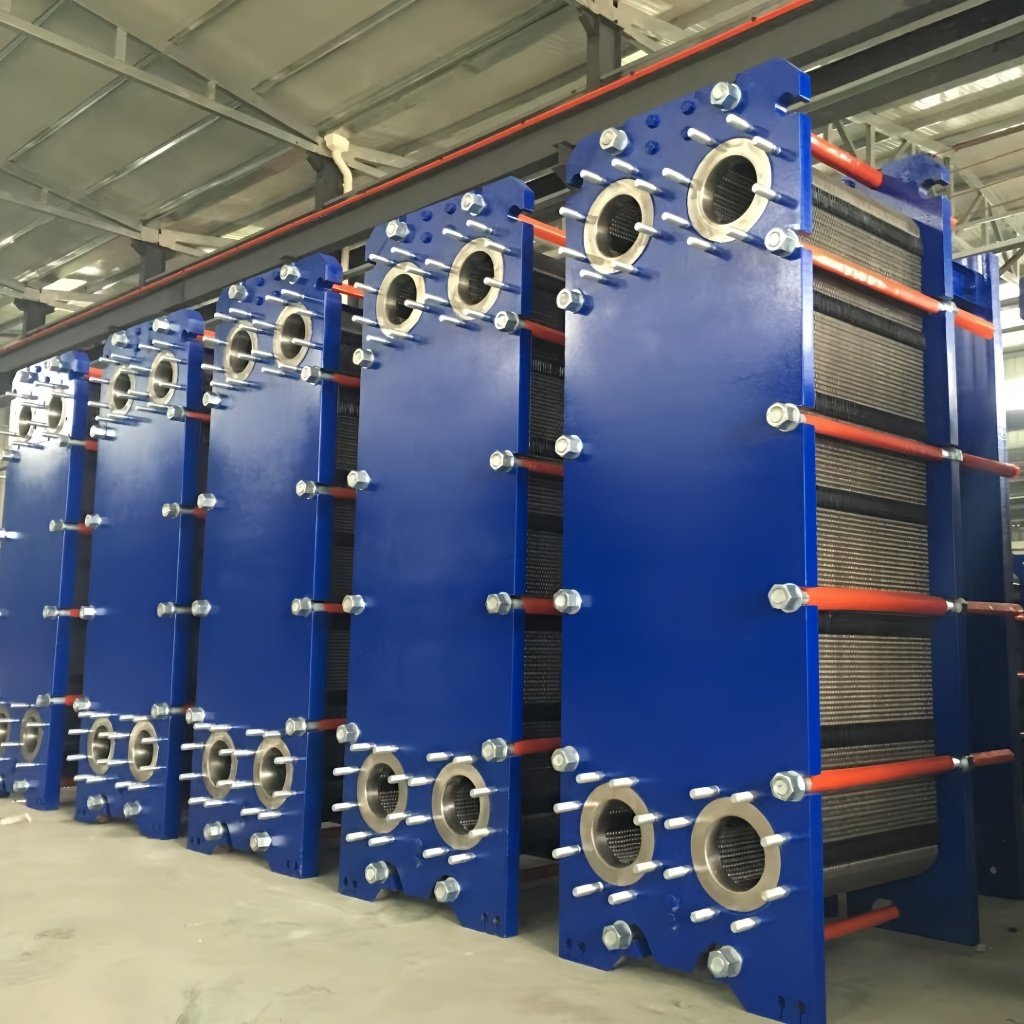

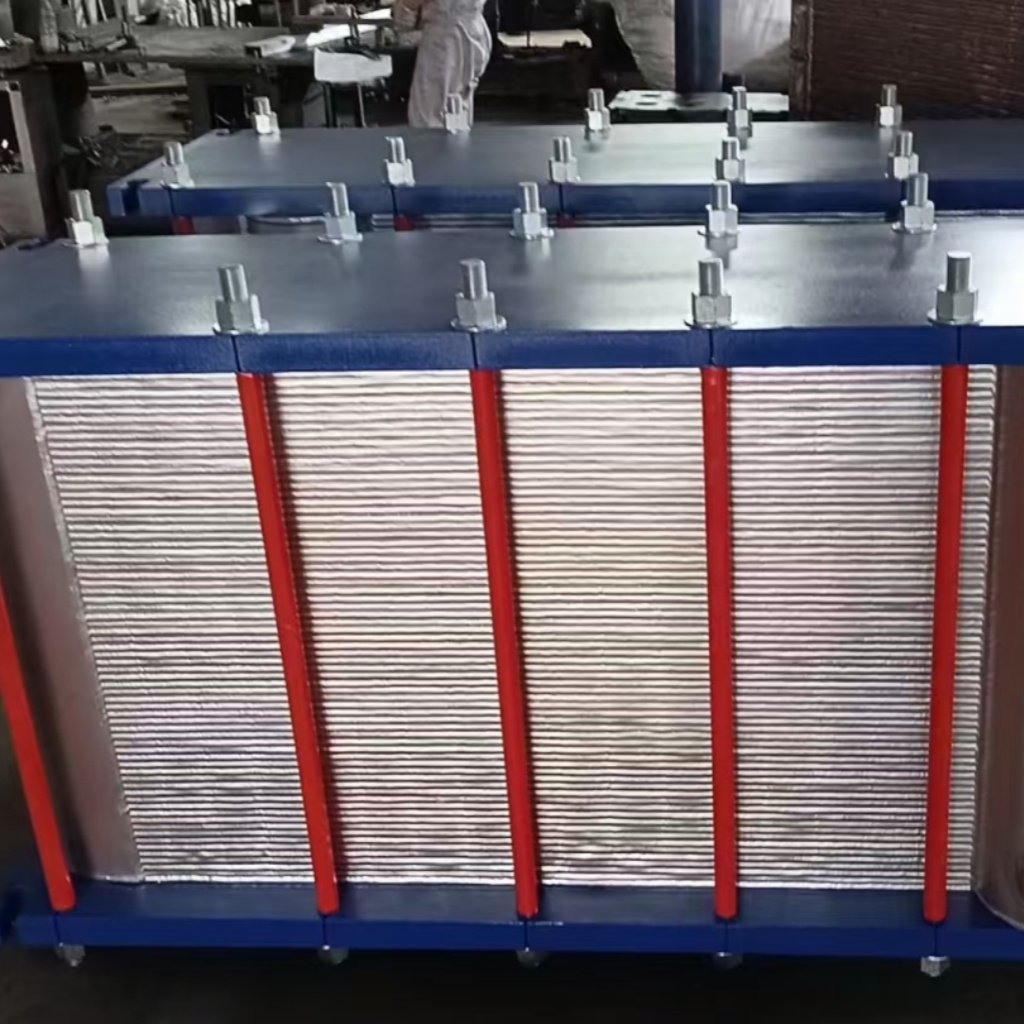

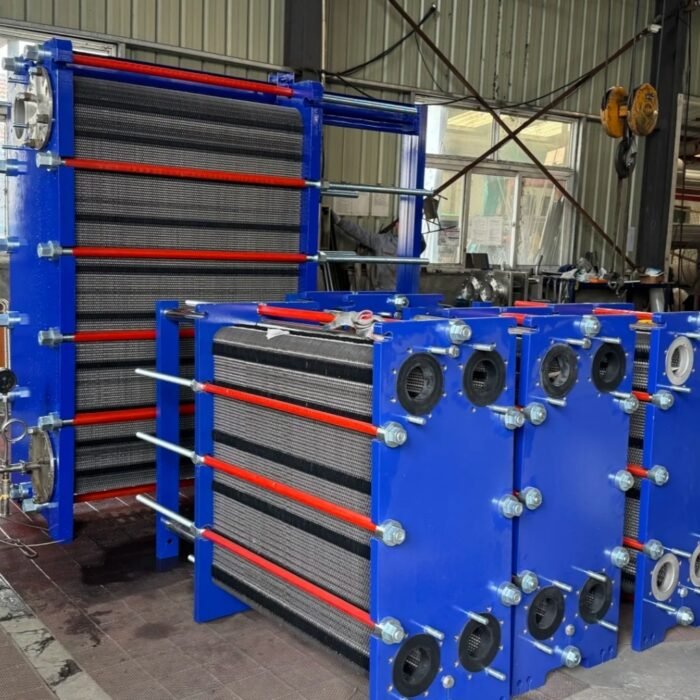

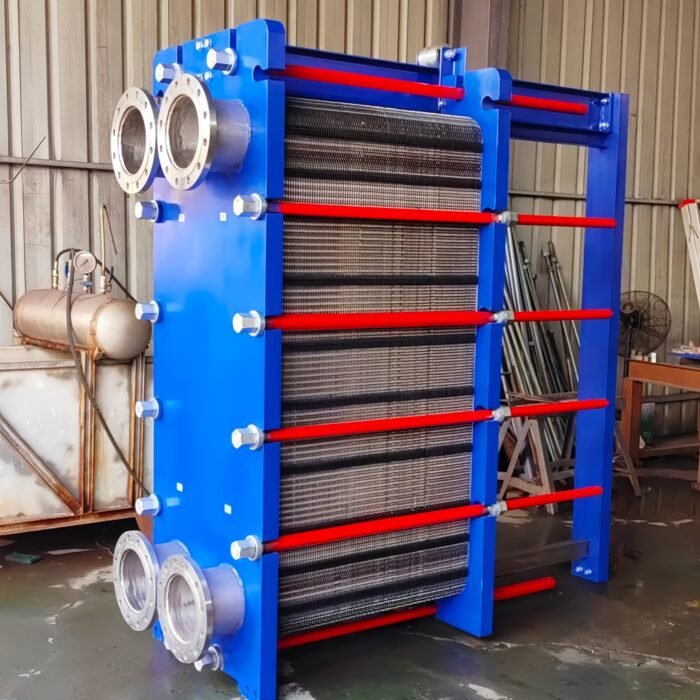

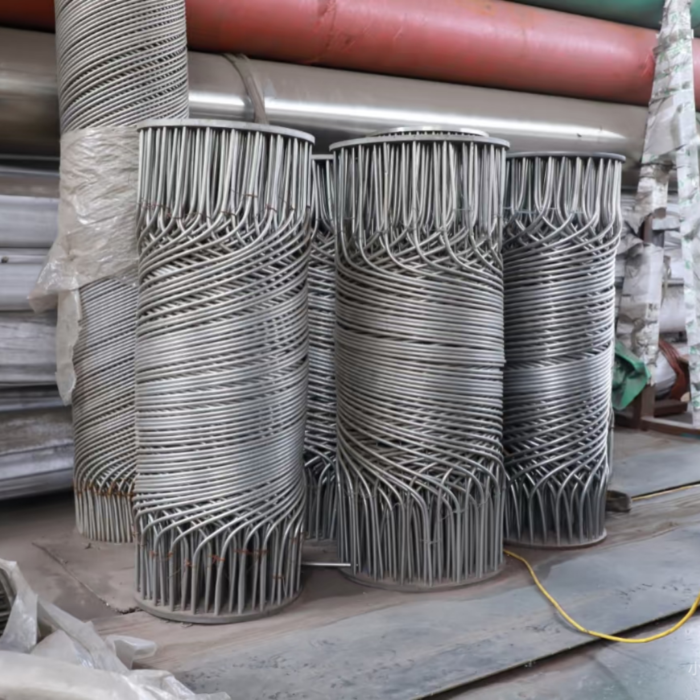

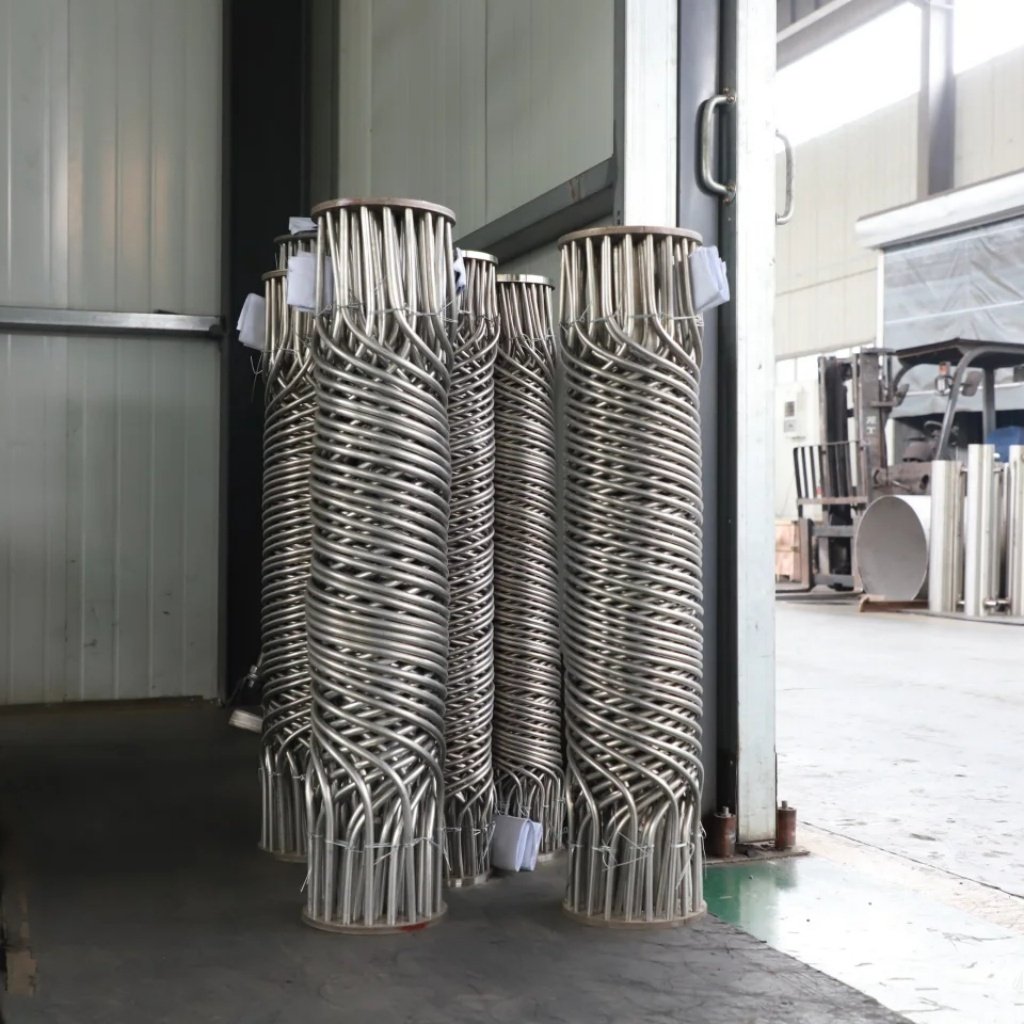

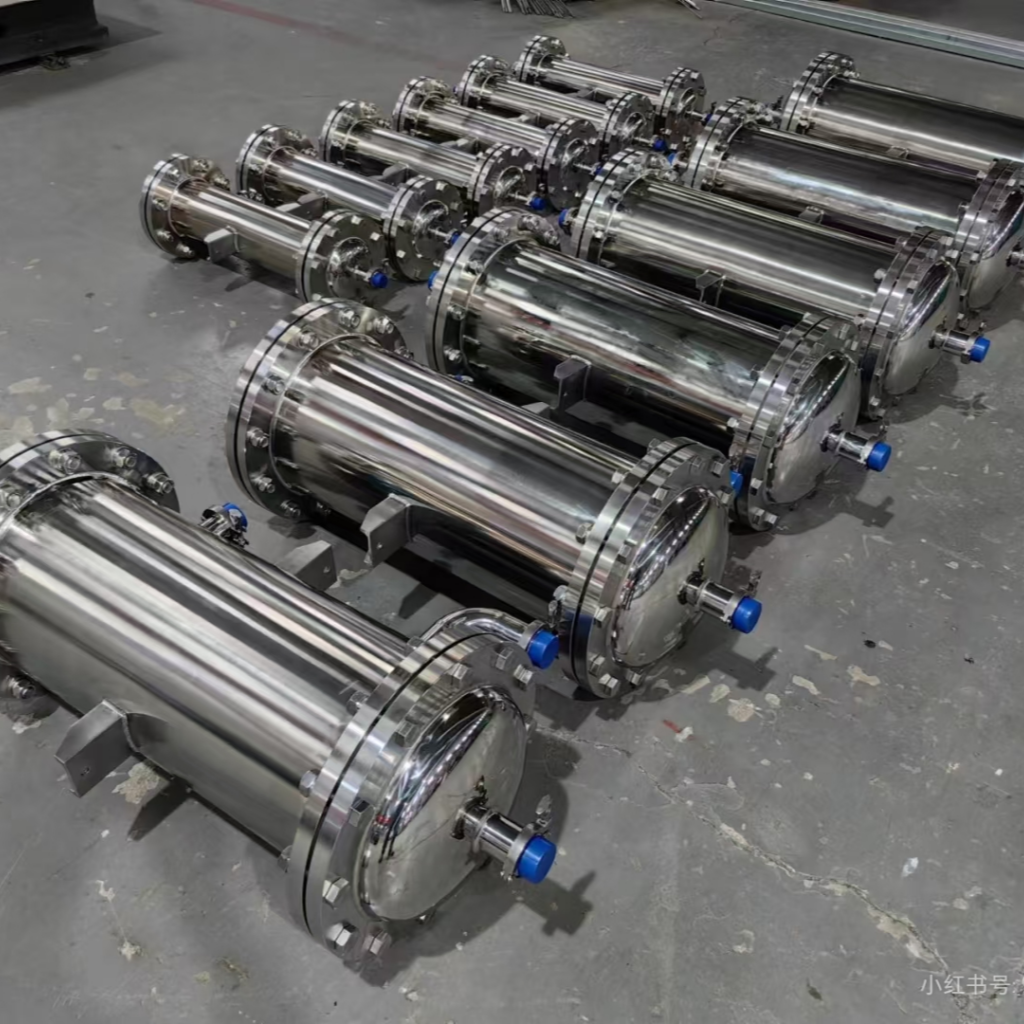

- Types: Shell-and-tube, coil, U-tube, plate and double-tube-sheet configurations
- Tube size reference: 12-38 mm outside diameter, wall thickness from 0.5 mm and length up to 6000 mm; final capability confirmed per drawing
- Tube specifications: ASTM B338 or ASME SB338 for heat exchanger tubing; ASTM B861 or ASME SB861 where pipe requirements apply
- Components: Titanium tubes, tube sheets, baffles, fittings, frames and complete assemblies
- Fabrication: GTAW/TIG welding, machining and assembly according to the approved design and procedure requirements
- Inspection options: Helium leak and hydrostatic pressure testing; test pressure and acceptance criteria confirmed per design and order
- Finish and mounting options: Pickled, polished or annealed surfaces; flanged, braced or frame-mounted configurations
Heat-exchanger suitability depends on fluid composition, operating temperature, design pressure, flow rate, corrosion allowance and applicable design code. These inputs must be reviewed before quotation.
Ordering Information
Provide the process fluid, inlet and outlet temperatures, flow rate, design pressure, heat duty, material grade, drawing, inspection/documentation requirements and delivery destination. Contact Us for an engineering review and project-specific quote.
Production capability
Manufacturing, Assembly & Verification
Production and inspection scope is reviewed against the approved drawing, service conditions and applicable order requirements before manufacturing begins.
01
Tube Bending & Tube-Sheet Machining
Tubes and tube sheets are prepared to the approved dimensions. U-bending, drilling and machining requirements are confirmed from the project drawing and assembly tolerances.
02
TIG Welding & Assembly
Titanium tube-to-sheet joints and assemblies can be produced using GTAW/TIG welding with inert-gas shielding under the applicable procedure and design requirements.
03
Leak, Pressure & NDT Options
Hydrostatic or pneumatic testing, helium leak testing, visual inspection and dye penetrant testing can be specified. Test pressure and acceptance criteria are agreed per order.
04
Surface Finish & Traceability
Pickling, passivation, polishing or annealed finishes are available where required. Material and inspection documentation is matched to the agreed purchase specification.
Engineering review
Applications Assessed Against Service Conditions
Titanium heat exchangers may be considered for marine, chemical-processing, water-treatment, pharmaceutical, HVAC and energy systems. Material grade and configuration must be selected from the actual fluid chemistry, temperature, pressure, flow and design code.
